In modern manufacturing and engineering, precision and efficiency are essential. Tools that allow flexibility without compromising accuracy are highly valued, and one such important tool is the Winkelbohrspindel. Whether in industrial production, CNC machining, or even specialized woodworking, this tool plays a crucial role in simplifying complex drilling tasks.
But what exactly is a Winkelbohrspindel, and why is it so widely used across industries? This article provides a complete and detailed explanation, covering its definition, working mechanism, applications, types, and benefits.
Quick Overview Table
| Attribute | Details |
|---|---|
| Name | Winkelbohrspindel |
| Type | Mechanical Drilling Attachment |
| Function | Redirects drilling angle (usually 90°) |
| Common Use | CNC machines, metalworking, woodworking |
| Key Feature | Allows drilling in tight or angled spaces |
| Power Source | Machine-driven (spindle-based) |
| Material | Steel, aluminum, hardened alloys |
What is a Winkelbohrspindel?

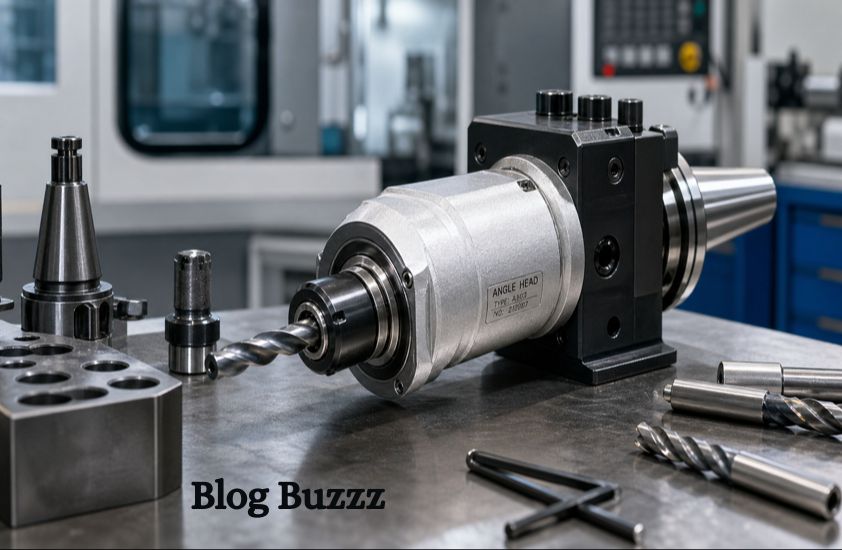

A Winkelbohrspindel (translated as angle drilling spindle) is a mechanical device used to change the direction of a drilling tool. Typically, it redirects the rotation of a machine spindle by 90 degrees, allowing drilling operations to be performed at an angle or in tight, hard-to-reach areas.
Unlike standard drilling tools that operate in a straight line, a Winkelbohrspindel enables side drilling without repositioning the workpiece. This makes it highly efficient and practical in industrial settings where time and precision are critical.
In simple terms:
- Standard drilling → Straight direction
- Winkelbohrspindel → Angled or sideways drilling
How Does a Winkelbohrspindel Work?
The working principle of a Winkelbohrspindel is based on mechanical transmission using gears.
Inside the unit, bevel gears are used to transfer rotational motion from the main spindle to the output shaft at a different angle. When the machine runs, the rotation is redirected through these gears, allowing the cutting tool to operate sideways or at a specific angle.
This design ensures that:
- Power transmission remains efficient
- Torque is maintained
- Precision is not compromised
The entire mechanism is enclosed in a robust housing that protects internal components and ensures durability during heavy-duty operations.
Key Features of a Winkelbohrspindel
A high-quality Winkelbohrspindel typically includes several important features:
- High precision drilling capability
- Durable construction for industrial use
- Compatibility with various machines (especially CNC)
- Efficient torque transmission
- Compact design for tight spaces
- Fixed or adjustable angle configurations
These features make it an essential tool in industries where accuracy and efficiency are required simultaneously.
Types of Winkelbohrspindel
There are different types of Winkelbohrspindel available depending on the application:
1. Fixed 90-Degree Winkelbohrspindel
This is the most common type, designed for standard right-angle drilling tasks. It is widely used in manufacturing and machining.
2. Adjustable Angle Winkelbohrspindel
This type allows users to change the drilling angle, offering greater flexibility for complex operations.
3. Multi-Spindle Winkelbohrspindel
Used in mass production environments, this type allows multiple holes to be drilled simultaneously, increasing productivity.
4. CNC-Compatible Winkelbohrspindel
Designed specifically for automated systems, these are integrated into CNC machines for precision-based manufacturing.
Applications of Winkelbohrspindel
The Winkelbohrspindel is widely used across various industries due to its versatility.
Industrial Manufacturing
It is commonly used to drill holes in machine components where direct access is not possible.
Automotive Industry
In engine and gearbox manufacturing, it helps create precise angled holes without repositioning parts.
Metalworking
Used for drilling steel structures, frames, and heavy components with high accuracy.
Woodworking
Ideal for furniture making, especially for hidden joints and angled connections.
CNC Machining
Plays a key role in automated processes where complex geometries require angled drilling operations.
Advantages of Using a Winkelbohrspindel
The use of a Winkelbohrspindel offers several important advantages:
Improved Efficiency
It eliminates the need to reposition the workpiece, saving time and effort.
Enhanced Precision
Allows accurate drilling in difficult or restricted areas.
Increased Productivity
Especially useful in industrial production where speed and consistency matter.
Cost-Effective Solution
Reduces the need for multiple machines or setups.
Versatility
Can be used across different materials such as metal, wood, and plastic.
When Should You Use a Winkelbohrspindel?
A Winkelbohrspindel is the ideal tool in situations where:
- The drilling area is hard to reach
- Side or angled drilling is required
- High precision is necessary
- Time-saving is important in production
- Complex designs are involved
It is especially beneficial in modern manufacturing setups where efficiency and accuracy must go hand in hand.
Maintenance and Care Tips
To ensure long-lasting performance, proper maintenance of a Winkelbohrspindel is essential:
- Regular lubrication of internal gears
- Cleaning after each use to remove debris
- Checking for wear and tear in moving parts
- Proper storage in a dry environment
- Avoiding overload or misuse
Routine maintenance helps maintain performance and prevents unexpected breakdowns.
Conclusion
The Winkelbohrspindel is a powerful and highly practical tool that has become indispensable in modern engineering and manufacturing. By allowing angled drilling without repositioning the workpiece, it significantly improves workflow efficiency and precision.
From CNC machining to woodworking and heavy industrial applications, the Winkelbohrspindel continues to play a vital role in achieving complex drilling tasks with ease. Its versatility, durability, and performance make it a must-have tool for professionals seeking reliable and efficient solutions.
At Blog Buzzz, we aim to provide in-depth, easy-to-understand guides on tools and technologies that matter. Understanding tools like the Winkelbohrspindel helps professionals and enthusiasts make better decisions and improve their work quality.
